Description

Overview

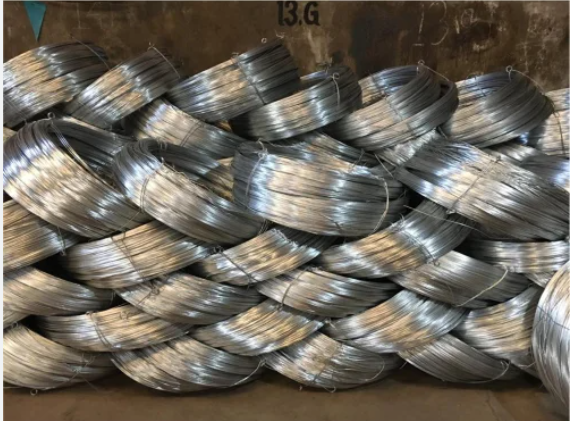

Our Premium Class GI Wire is manufactured from low-carbon steel and hot-dip zinc coated for long-term protection against rust in outdoor and coastal environments. Each coil is produced under strict process control to ensure uniform diameter, consistent coating weight, and smooth pay-off during use.

Why this wire?

Hot-dip zinc coating for superior corrosion protection vs. electro-galvanized

Uniform gauge for predictable weight per coil and easy field work

Bright, clean finish—low flake, low white rust with proper storage

High formability: suitable for weaving, tying, knotting and machine runs

Multiple options: gauge (SWG/mm), coating GSM, tensile grades, coil sizes

Typical Applications

Perimeter fencing & chain-link mesh

Barbed wire making & knotting

Stay wire, binding & baling

Cable armouring, earthing, gabions, vineyard trellising

General industrial & construction usage

Quality & Documents

Manufactured from prime wire rod; hot-dip galvanized

Mill Test Certificate (MTC) / basic test report available on request

Zinc used: High-purity SHG grade (typical)

Note: Price varies with zinc & steel markets. For a formal quotation (gauge + GSM + coil weight), share your requirement.

Technical Specifications
Parameter Standard Offering / Range
Base Material Low-carbon steel (mild steel)
Coating Type Hot-dip galvanizing (HDG)
Coating Weight (GSM) 40–275 GSM (made to order)
Surface Finish Bright, smooth, spangle-controlled
Diameter / Gauge Options 0.90 mm – 4.00 mm (≈ 20 SWG – 8 SWG)
Typical Tensile Strength 350–650 MPa (Soft / Medium / Hard as ordered)
Elongation (typical) ≥10% (varies by grade & diameter)
Coil Weight Options 25 kg / 50 kg / 80 kg / 100 kg (custom on request)
Coil ID / OD (approx.) ID: 300–450 mm; OD: 600–800 mm (varies by coil size)
Weight Tolerance ±2–3% (by coil)
Zinc Purity ≥99.9% (typical SHG)
HSN Code 72172000 (Wire of iron/steel plated or coated with zinc)
Country of Origin India
What’s Included

GI wire coils as per ordered gauge, GSM & coil weight

Strapped & stretch-wrapped HDPE woven packaging

Basic test/QA report on request

Commercials & Logistics

Rate: ₹67.00/kg (ex-GST)

GST: As applicable per HSN 72172000

MOQ: 1 coil (typically 50 kg); bulk orders welcome

Dispatch Time: Ready stock 24–72 hrs; custom GSM 5–7 working days

Freight: Extra at actuals / ex-works as per order terms

Payment: As mutually agreed (advance / credit line, if any)

Website Attributes (for WooCommerce / catalog filters)

Gauge (SWG): 8, 9, 10, 12, 14, 16, 18, 20

Diameter (mm): 4.00, 3.66, 3.25, 2.64, 2.03, 1.63, 1.22, 0.90

Coating (GSM): 40, 60, 80, 120, 180, 220, 275

Tensile Grade: Soft, Medium, Hard

Coil Weight: 25 kg, 50 kg, 80 kg, 100 kg

Finish: Bright HDG

(Set these as “Attributes,” then create “Variations” to price by kg; you can also offer pre-packed coils at fixed prices.)

Key Features (bullets for listing)

Hot-dip zinc coated for long life outdoors

Consistent diameter & zinc GSM across the length

Bright finish with low dusting & minimal zinc flakes

Smooth pay-off—ideal for weaving/mesh/barbed wire machines

Multiple gauge & tensile options to match your application

Competitive pricing and quick dispatch on standard sizes

SKU / Coding (suggestion)

Use a structured SKU so picking & billing stays clean:

SKU format: GIW-HDG-{GAUGE_SWG}-{GSM}-{COIL}

Example: GIW-HDG-10SWG-120GSM-50KG

SEO Fields

Meta Title (≤60 chars): Premium GI Wire | Hot-Dip Galvanized (HDG) – ₹67/kg

Meta Description (≈150–160 chars): Buy premium GI wire with hot-dip zinc coating for fencing & industrial use. Multiple gauges, GSM & coil sizes. Price ₹67/kg (ex-GST). Fast dispatch.

Tags/Keywords: GI wire, hot dip galvanized wire, fencing wire, chain link wire, barbed wire wire, zinc coated wire, 10 SWG GI wire, 12 SWG GI wire, 120 GSM GI wire

FAQs (optional section for the product page)

Q1: What GSM should I choose for outdoor fencing?
For typical fencing, 80–120 GSM is common. For coastal/high-corrosion zones, consider 180–275 GSM.

Q2: Can you supply specific tensile grades for barbed wire machines?
Yes. Order as Soft/Medium/Hard; we’ll match tensile & elongation to your machine needs.

Q3: Do you provide test certificates?
Yes, MTC/test report can be shared on request with batch & coating details.

Notes to Buyer (small print)

Price shown is ex-GST & ex-freight; taxes & transport are extra.

Dimensions, tensile, and GSM are customizable. Final specs will be as per purchase order.

Store coils in a dry, covered area to avoid white rust. Use gloves and proper handling equipment.
